GNSS receivers built to talk across brands.

Centimeter-accurate hardware that anchors your bridge, from a pocket-sized network rover you can carry all day to the CHC iBase base station that finally gets cross-manufacturer UHF working. Keep your BRX7. Add what you actually need.

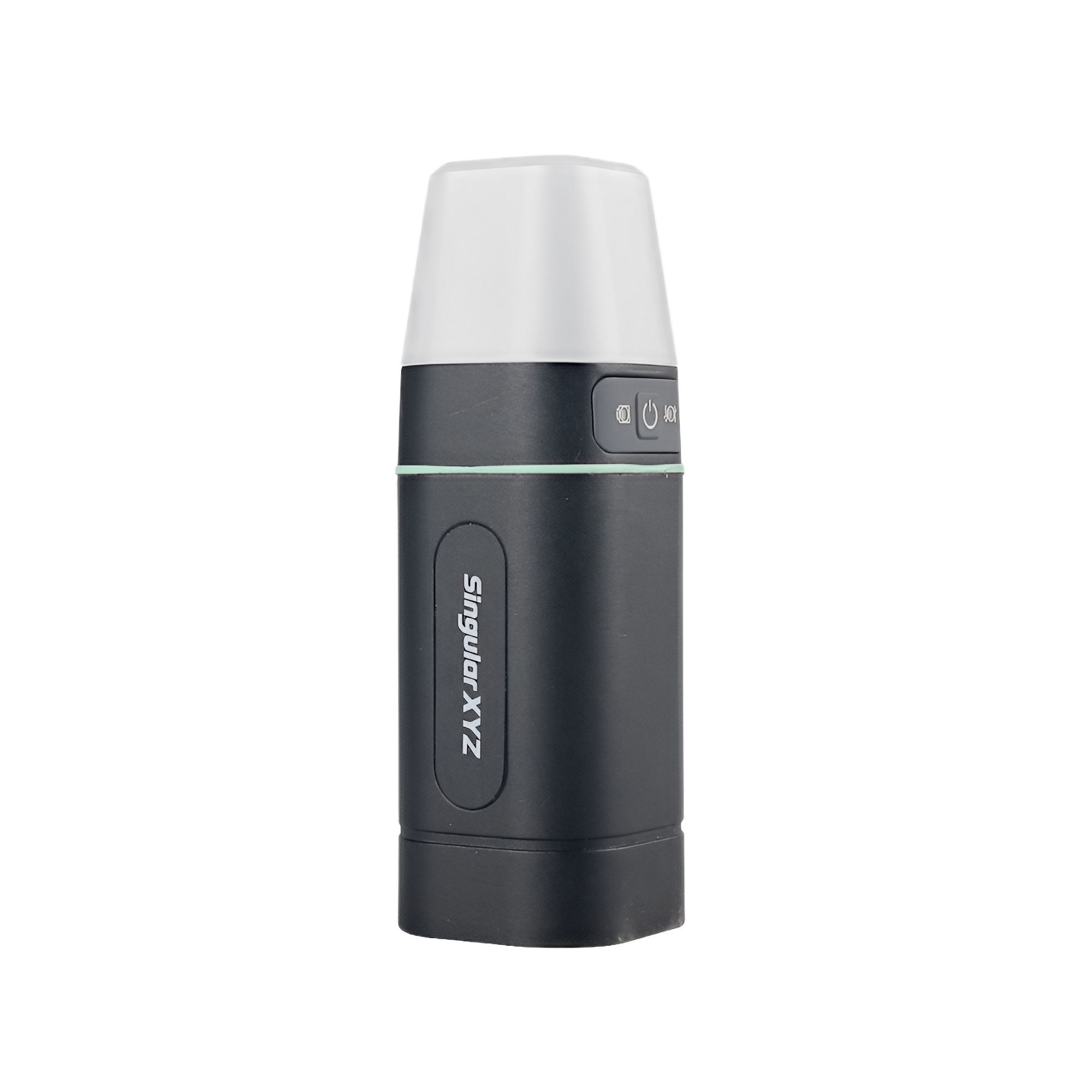

RTK Connections GNSS network RTK rover
Complete Kit · Network RTK Rover

The RTK Connections rover kit

A pocket-sized, centimeter-accurate RTK rover. Connect via Bluetooth to your data collector and survey the moment you power on: point survey, point stakeout, and CAD stakeout through SingularPad / SingularSurv.

$4,895 Complete kit
  • Receiver, network RTK rover
  • Rugged Android tablet
  • Singular Pad field software
  • 2 m pole
  • Carbon-fiber bipod
  • 1 year HPRTK corrections
Order or ask a question → Call 888-707-1157
Specifications

8 mm accuracy, in your pocket.

Everything that matters in the field: tracking, accuracy, and the build that survives it.

Satellite tracking

Channels1408
ConstellationsGPS · BDS · GLONASS · Galileo · QZSS · NavIC · SBAS
Cold start< 30 s
RTK initialization< 5 s typical · >99.9% reliability

Accuracy

RTK horizontal8 mm + 1 ppm
RTK vertical15 mm + 1 ppm
Static post-processing2.5 mm + 0.5 ppm
SBAS< 1.0 m 3D RMS

Physical / electrical

SizeΦ50 mm × 149 mm
Weight409 g
Battery4800 mAh, 16 hr
ChargingType-C

Communication / environmental

BluetoothBT 4.0
Data protocolNtrip · RTCM v3.3 / 3.2 / 3.1 / 3.0
Waterproof / dustproofIP65
Working temp.−45 °C to +75 °C
The Ultimate Base Station

CHC iBase: the anchor that talks to everything.

When you still need a base, use one that carries real range and never strands a crew. The iBase bridges UHF and cellular, and pairs with the gear you already own.

5-watt UHF radio

A 5-watt internal radio, not the standard 1–2 W, for the range crews actually need across a site.

Automatic cellular failover

An integrated cellular SIM with automatic UHF → cellular failover, and keep correcting where line-of-sight runs out.

BRX7 compatible

Works with your Carlson BRX7 via the RTK Connect App, no rip-and-replace to get everything paired.

Field guidance

"My UHF radios are not talking."

The most common field headache, and it's almost never the hardware. Run this checklist before you blame the gear.

Most common cause

Two radios that won't pair are usually mismatched on one setting, not broken. Cross-manufacturer pairs especially need every parameter to line up exactly.

01

Frequency

Both radios on the exact same channel and frequency. A single digit off and they never hear each other.

02

Protocol

Match the air protocol across manufacturers, the most-missed setting on cross-brand pairs.

03

Power & antenna height

Enough transmit power for the distance, and the base antenna high enough for line-of-sight.

04

Interference

Other transmitters, terrain, and obstructions on the channel. Move, raise, or change channel to clear it.

More from RTK Connections

The lineup is growing.

We're expanding the hardware and software we carry. These slots are built to fill in as new offerings land.

Hardware

CHC iBase station

5-watt UHF base with cellular failover. Full product page coming.

Detail page · soon
Software

WestLat Connect

The configuration layer that ties cross-manufacturer gear together.

Detail page · soon
